Tying the System Together

Last Edit November 1, 1996; July 20, 2001


Am2904

Figure 7-3 diagrams the interconnect required between the Am2904 and an array of Am2903s. A similar interconnect is required if the ALU is formed from Am2901s. Figure 7-4 presents the block diagram of the CPU that has been under discussion. In includes the IR (instruction register) connected between the system data bus and the mapping PROM and also shows its connection to the A,B address selection MUX.

Figure 7-3 Full interconnection of Am2904-Am2903

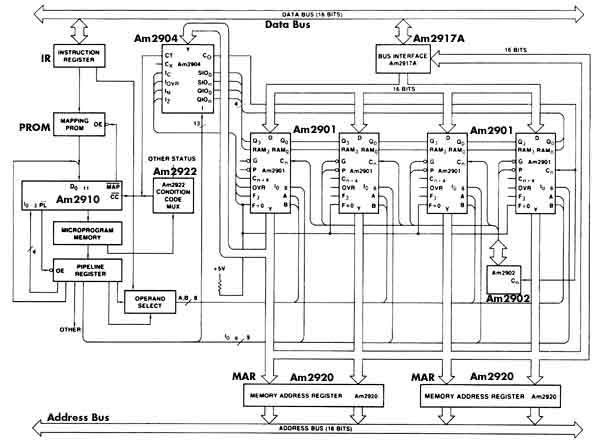

Figure 7-4 Typical application of Am2904 with Am2901

The mapping PROM decodes the op code and supplies an address out on tristate lines to the microprogram sequencer, an Am2910.

The Am2910 supplies the microprogram address to be fetched to the microprogram memory and supplies, in this case, output enables to the mapping PROM and the pipeline register. The Am2910 receives

  1. a 4-bit instruction out of the pipeline register
  2. an address into its Di inputs (the source of the address selected by the decode of the instruction received)
  3. a condition code input on the CC' line

The CC' line is connected to a condition code MUX, an Am2922 in this case, which is a registered MUX -- i.e., it latches the section code sent to it and therefore is not connected to a pipeline register. It also has polarity control. The CC' line is attached to the CT output of the Am2904.

The pipeline register is sufficiently wide to contain all of the microinstruction fields in a horizontal format. In a typical system this can vary between 32 and 128 bits. The HEX-29, a generalized register architecture 16-bit CPU, has a 64-bit microword, with one field with overlay. The SUPER-16, also a 16-bit system, but with an instruction-fetch overlap and certain I/O features which allow it to have a machine instruction execute time of 200ns, has a 96-bit microword. [These systems existed in the 1970-1980s.]

The Am2904 is connected to the RALU status outputs and to the most significant and least significant RAM and Q outputs. It is connected to the system data bus so that the machine level status bits can be read from or written into the status register.

The ALU consists of four Am2901 RALUs and an Am2902 carry-lookahead chip. The DAi inputs are connected to the system data bus through a bus interface and are connected to the MAR register. The MAR register is connected to the system address bus. The A and B address lines are sourced either from the IR, for register instructions, or from the pipeline register, for implied register addressing, as selected by the microinstruction via the operand select MUX.

Figure 7-5 shows the same architecture implemented using the Am2903 RALU rather than the Am2901.

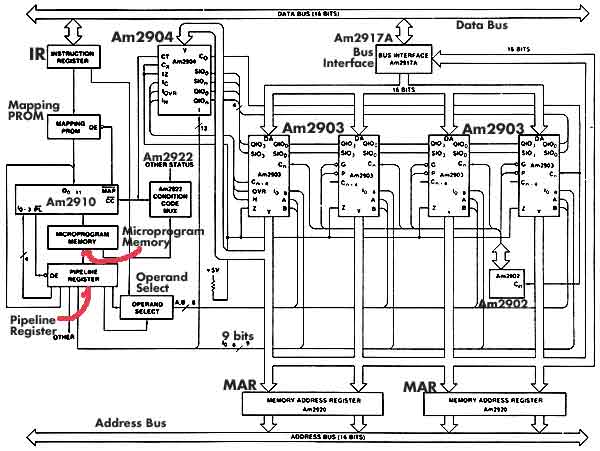

Figure 7-5 Typical application of Am2904 with Am2903
